Specialty Machines

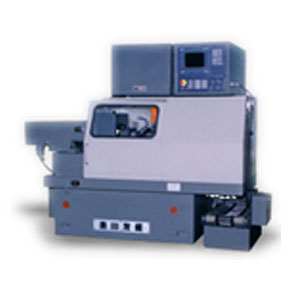

CNC Internal Diameter and Face Grinding Machine

Again, using a standard base from our #7332/#7340 form grinder series, the #QC036A grinder is a specially developed machine utilized upstream from gear grinding, but is no less important to finishing gears. In a single chucking, for single use, or in series, these machines can be set up by the consumer to perform Inside Diameter, Face or End Facing operations. Infeed, compensation and reciprocating movement are controlled by a Num Axium 1050 Control with QC conversation format software.

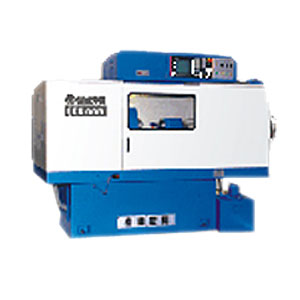

CNC Vane Pump Ring Grinding Machine

Using a standard machine base from our #7332/#7340 form grinder series, these machines can use common or CBN grinding wheels and have flexible dressing capability for a variety of pump ring features. The operation of the machine is simple, with on-board part sensing, hydraulic clamping and QC designed software with a conversational format.
